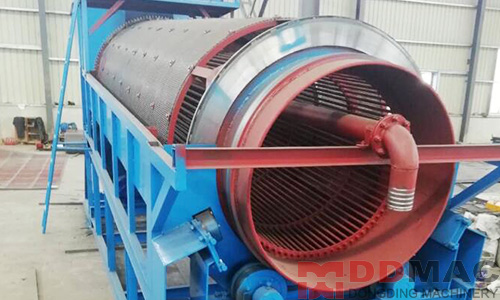

1. Trommel Screen Introduction
Trommel screen has wide range of sizes and capacities,it is a mechanical screening machine used to separate materials.
It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.
When materials flow towards along the inclined rotating drum,materials jump and roll, it undersized material smaller than the screen apertures passes through the screen,
while the oversized material exits at the other end of the drum.
Trommel Screen Machine Advantages
It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.
When materials flow towards along the inclined rotating drum,materials jump and roll, it undersized material smaller than the screen apertures passes through the screen,
while the oversized material exits at the other end of the drum.
Trommel Screen Machine Advantages
1.Designed to meet your operation- Trommel screen can be customized to meet different capacity and working site;
2.No pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well;
3.Application at compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc;
4.Superior design-Simple structure,easy maintenance,steady operation,low energy consumption;
5.Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage;
6.Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.
Trommel Screens Technical Parameters
Trommel Screens Technical Parameters
| Model | Length Range | Segment No. | Aperture Size |
Power (Kw) |
Inclined Angle | Max. Material Size | Rotating Speed（rpm） |
| GTSφ600 | 2-4m | 1-2 | 5-35mm | 2.2-3 | 0-7° | 50mm | 15-18 |
| GTSφ800 | 2-5m | 1-3 | 5-40mm | 3-5.5 | 0-7° | 60mm | 15-18 |
| GTSφ1000 | 2-6m | 1-4 | 5-50mm | 4-7.5 | 0-7° | 80mm | 15-18 |
| GTSφ1200 | 3-8m | 1-4 | 5-60mm | 5.5-11 | 0-7° | 100mm | 15-18 |
| GTSφ1500 | 3-10m | 1-5 | 5-60mm | 7.5-1 5 | 0-7° | 150mm | 15-18 |
| GTSφ2000 | 4-12m | 1-5 | 5-75mm | 7.5-l8.5 | 0-7° | 180mm | 15-18 |
| GTSφ2500 | 5-12m | 1-6 | 5-90mm | 11-l 8.5 | 0-7° | 200mm | 15-18 |
