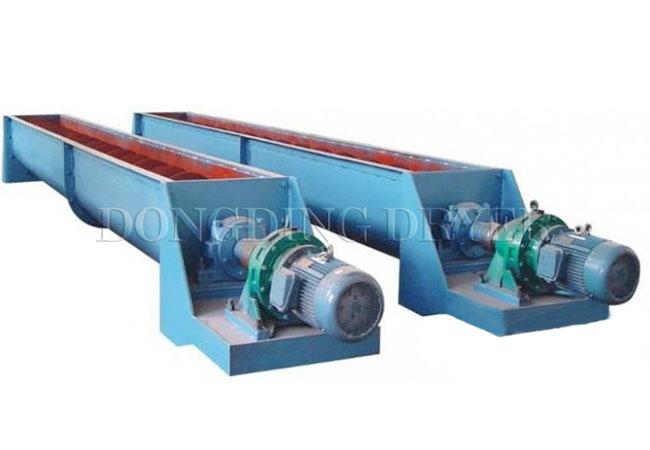

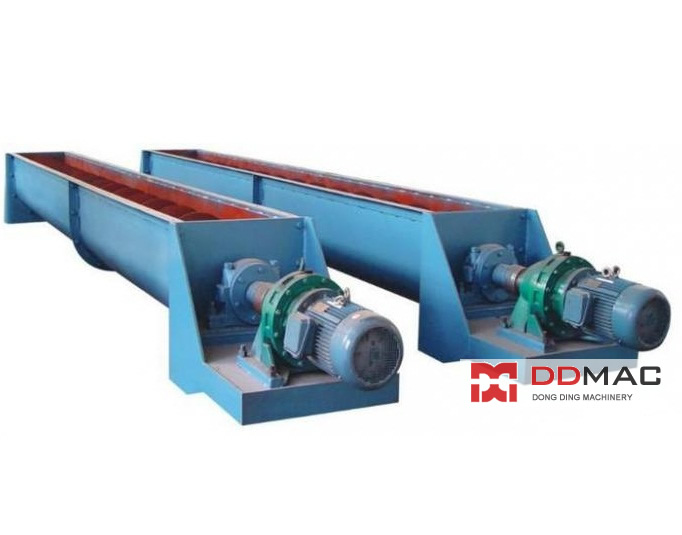

Screw Conveyor

• Introduction
• Features
• Technical Parameter
• Inquiry

Screw conveyors are used to convey materials such as bulk solids or sludge both on horizontal and high inclination, and screw conveyors are designed to provide an enclosed method of transferring materials from one point to another. It consists of a screw inside a hollow pipe, screw conveyors contained within a tube and it is turned with the help of a motor in order to deliver material from one end of the screw conveyors to the other.

Screw Conveyors Bucket Elevators equipment play an important role in transporting material from one mill to another. Some Screw Conveyors are designed to operate horizontally, some on a slope, others bucket elevators elevate the material vertically to a different level of the building. The requirement for bucket elevator conveyors will depend on how automated the mill is to be and how its plant is laid out.

The frequent use of screw conveyors and bucket elevators is made in the modern pellet mill (often using pneumatic systems) to minimize labour needs maximise the use of land by building multi-storey, rather than horizontally arranged plants.



Technical parameter:

model

GX15	GX20	GX25	GX30	GX40	GX50	GX60
Screw diameter  (mm)	150	200	250	300	400	500	600
Transport capacity for magnesium power (t/h)	4.5	8.5	16.5	23.3	54	89	139
Transport capacity for cement (t/h)	4.1	7.9	15.6	21.2	51	85	134
Transport  capacity for  sodium  carbonate (t/h)	3	6.7	10.7	18	35.5	70	97
W×H (mm)	272×314	342×384	392×464	468×555	572×685	706×823	806×973
Shortest layout  of inlet (mm)	190	220	270	300	350	450	550
Height of inlet  (mm)	170	220	270	320	420	528	628
Height of inlet  (mm)	75	100	120	140	160	160	180
Dimensions of  square opening  of outlet (mm)	176	226	276	328	428	536	636
Height of outlet  (mm)	135	165	195	225	280	340	430

Features:

It is with simple structure, small cross sectional dimension, good sealing performance, low cost and easy operation. It is convenient to feed and discharge during operation, and the conveying direction can be opposite. Materials can be mixed, agitated, heated and cooled during conveying. Besides, material flow can be adjusted by loading/unloading value.

Features:

It is with simple structure, small cross sectional dimension, good sealing performance, low cost and easy operation. It is convenient to feed and discharge during operation, and the conveying direction can be opposite. Materials can be mixed, agitated, heated and cooled during conveying. Besides, material flow can be adjusted by loading/unloading value.

model	GX15	GX20	GX25	GX30	GX40	GX50	GX60
Screw diameter  (mm)	150	200	250	300	400	500	600
Transport capacity for magnesium power (t/h)	4.5	8.5	16.5	23.3	54	89	139
Transport capacity for cement (t/h)	4.1	7.9	15.6	21.2	51	85	134
Transport  capacity for  sodium  carbonate (t/h)	3	6.7	10.7	18	35.5	70	97
W×H (mm)	272×314	342×384	392×464	468×555	572×685	706×823	806×973
Shortest layout  of inlet (mm)	190	220	270	300	350	450	550
Height of inlet  (mm)	170	220	270	320	420	528	628
Height of inlet  (mm)	75	100	120	140	160	160	180
Dimensions of  square opening  of outlet (mm)	176	226	276	328	428	536	636
Height of outlet  (mm)	135	165	195	225	280	340	430
