Gold Washing Plant

Gold Ore Washing Plant for Alluvial / Placer / Rocks

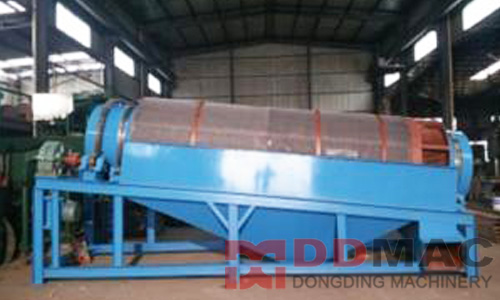

1. Gold Trommel Washing and Screening System

The excavator feeds raw ores into the mobile trommel screen which have hopper and primary screen.
The primary screen is to screen the larger sized gravel to avoid clogging the hopper. At the same time,
wash the material with water. Then the materials will into trommel screen which has 2 screen mesh(6mm and 15mm) for second screening.
And it will be divided into three types, -6mm, 6-15mm and + 15mm. (6mm and 15mm screen mesh just for your reference, this part can bu customized)



2. Alluvial Gold Concentrating System (-6mm)

The alluvial gold -6mm feed into gold concentrator to recovery gold. Gold concentrates will be feed into
shaking table to produce the final gold concentrate which can be smelt by smelting furnace. Tailings goes into the sluice box for recycling again.
One centrifugal concentratorworks and the other one removes the collected fine gold. Same as sluice box.
The cleaning time will be 2-6 hours later on gold concentrator. The time for manual cleaning on sluice box will be 4-6 hours later.

3. Alluvial Gold Concentrating System (6-15mm)

The alluvial gold between size 6-15mm feed into the vibrating sluice box for recoverying. The cleaning time will be 4-6 hours later on vibrating sluice box. Same as carpet sluice box.

4. Alluvial Gold ConcentratingSystem (+15mm)

The gold content inside the +15 mm material is very less, so manual picking is recommended.

5. Final Concentrates Processing System

The collected concentrates from concentrator and vibrating sluice box and carpet sluice box, will be feed into shaking table to get the final concentrates.

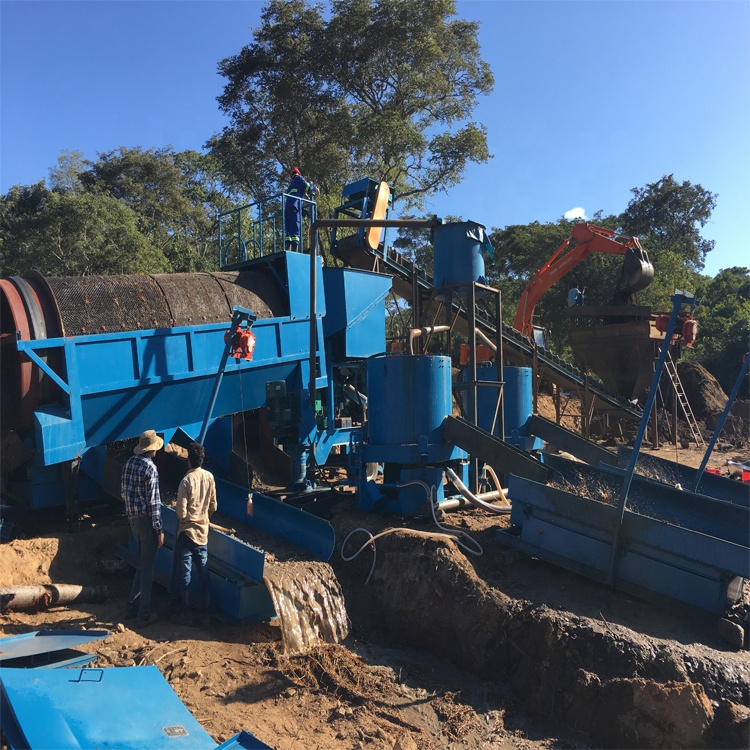

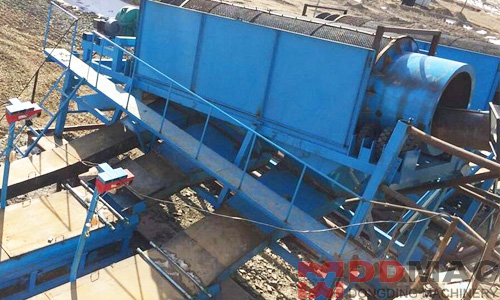

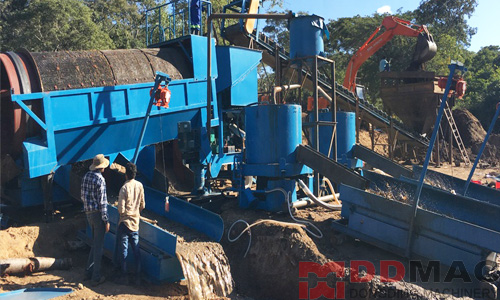

Some Gold Wash Plant Site For Reference
