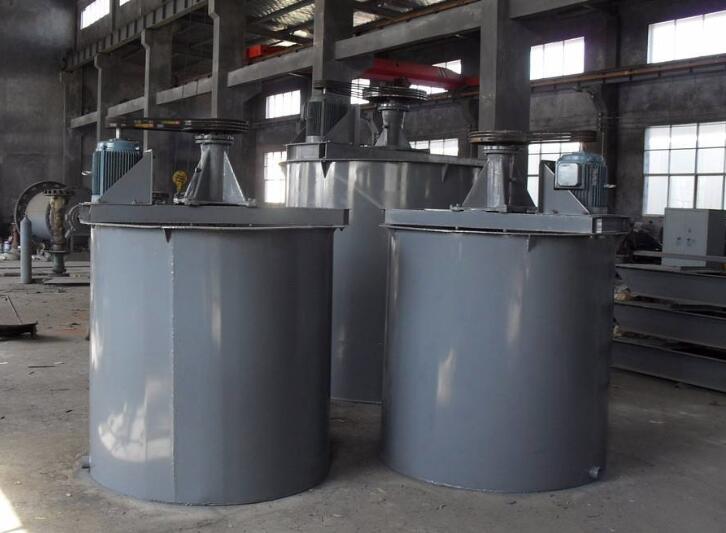

Agitation Tank Introduction
Agitation tank Agitation tank is mainly applied in slurry agitation before floatation, chemical and construction industry, cyanide leaching plant, tailings treatment plant, and coal plant etc.
Agitation Tank Advantages
1.Strong structure and good leak proof function
1.Strong structure and good leak proof function
2. The agitation tank have the multi-row spray nozzles, which realizes the adjustability of water volume.
3. The tank can stir materials evenly with the sector shaped agitating vane which realizes the largest contact area with the medium during the stirring process.
4. High efficiency
5. Reasonable price
Agitation Tank Technical Parameter
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model |
Motor Power (kW) |
Weight (kg) |
| BJ-500X500 | 0.0785 | 493 | 160 | Y80L-4 | 0.55 | 120 |
| BJ-750X750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 240 |
| BJ-1000X1000 | 0.58 | 530 | 310 | Y100L-6 | 1.5 | 680 |
| BJ-1500X1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 790 |
| BJ-1600X1800 | 2.6 | 331 | 400 | Y132M2-6 | 5.5 | 990 |
| BJ-2000X2000 | 4.4 | 230 | 550 | Y132M2-6 | 5.5 | 1800 |
| BJ-2000X2500 | 5.9 | 230 | 630 | Y160M-6 | 7.5 | 2106 |
| BJ-2500X2500 | 11.2 | 230 | 630 | Y160M-6 | 7.5 | 2766 |
| BJ-3000X3000 | 19.1 | 210 | 700 | Y225S-8 | 18.5 | 4613 |
| BJ-3500X3500 | 24 | 230 | 850 | Y225M-8 | 22 | 5980 |
| BJ-4000X4000 | 45 | 153 | 1000 | Y250M-8 | 30 | 8910 |
