Drum Screen

• Introduction
• Features
• Technical Parameter
• Inquiry

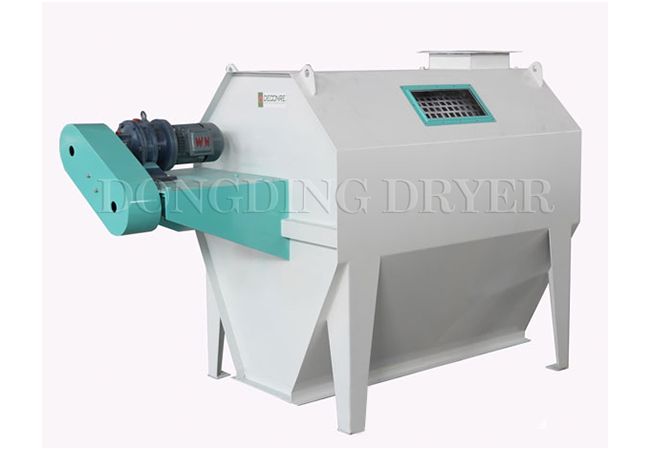

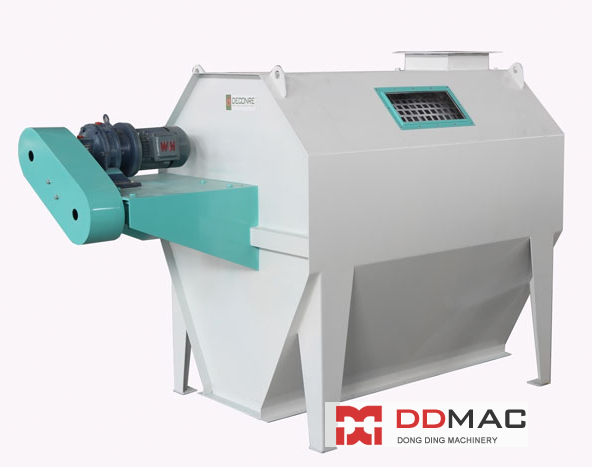

Drum screen is widely used to separate large impurity mixed in the powder material such as screes and iron scale, etc., in case of break mould and rollers in pellet mill when running.
This screen has high efficiency, running stable, reliable working, reasonable structure, covering small space, and easy maintenance and so on advantages.

Technical Parameter:

Boundary dimension（mm）

DMG12-3	20-50	Φ1200	3000	3		3580×1590×1675
DMG15-3	40-80	Φ1500	3000	5.5		3980×1790×1975
DMG18-3	80-150	Φ1800	3000	7.5		4150×1870×2240
DMG20-3	130-200	Φ2000	3000	11		4230×1950×2950

Features:

Configured for economical & efficient classification, Screening and grading

·  Heavy duty trommel drum with lifters at the front to facilitate material break up

·  Screen replaceable for different mesh sizes

·  Multiple screen size

·  Easily changed screen plates

·  Largest processing capacity in the industry

·  Unique screen design, result in higher capacities, longer screen life and no material clogging

·  Heavy duty feed hopper and extension

·  Discharge chute

·  Gear drive mechanism

·  Variable speed drive mechanism

Configured for economical & efficient classification, Screening and grading

·  Heavy duty trommel drum with lifters at the front to facilitate material break up

·  Screen replaceable for different mesh sizes

·  Multiple screen size

·  Easily changed screen plates

·  Largest processing capacity in the industry

·  Unique screen design, result in higher capacities, longer screen life and no material clogging

·  Heavy duty feed hopper and extension

·  Discharge chute

·  Gear drive mechanism

·  Variable speed drive mechanism

Model	Yield（m3/h）	Diameter（mm）	Length（mm）	Power（KW）	Boundary dimension（mm）
DMG12-3	20-50	Φ1200	3000	3		3580×1590×1675
DMG15-3	40-80	Φ1500	3000	5.5		3980×1790×1975
DMG18-3	80-150	Φ1800	3000	7.5		4150×1870×2240
DMG20-3	130-200	Φ2000	3000	11		4230×1950×2950
