GOLD CIL EQUIPMENT & GRAVITY SEPARATION EQUIPMENT
Desorption Electrowinning System
- Product ID：GOLD CIL EQUIPMENT & GRAVITY SEPARATION EQUIPMENT
- Phone: +86-371-55091029
- Tel: +86 18538798892
- Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.
Introduction

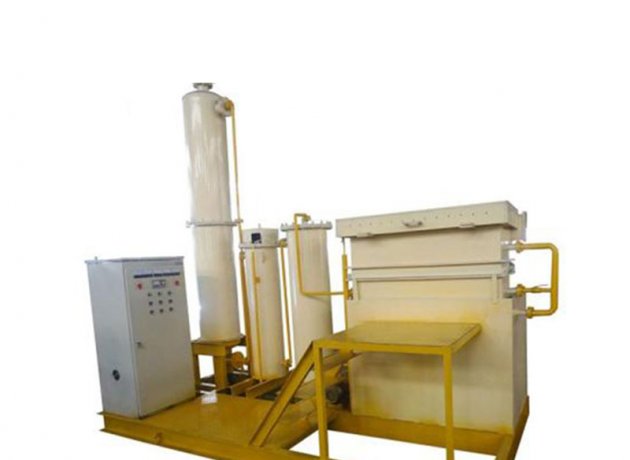

Complete desorption electrolysis equipment is the key equipment of gold cyanidation CIP process, it constructed by electric heater, desorption column, heat exchanger, electrolytic tank, pump and other parts. It featuring on compacted structure, convenient installation, desorption rate up to 96%, electrolytic rate greater than 99%
1.Low investment
2.Suitable for small miners
3.Performance stable
4.Easy installation and operation
| Desorption rate (%) | Electrolytic rate (%) | Installed capacity (kW) | Desorption temperature (℃) | Electrolysis voltage (v) | Electrolytic current (A) | Throughput (kg / lote) | Electrolyte flow (t / h) | Weight (kg) |
Specifications (mm) (LxWxH) |
| >96 | >99 | 30 | 95 |
1.5-3 ( CC ） |
200 | 300 | 1.5 |
2430( Does not contain electrical appliances ） |
4120 x 2100 x 4130 |
| >96 | >99 | 60 | 95 |
1.5-3 ( CC ） |
200 | 500 | 3 | 4860 | 4120 x 2100 x 4130 |
