GOLD CIL EQUIPMENT & GRAVITY SEPARATION EQUIPMENT
Shaking Table
- Product ID：GOLD CIL EQUIPMENT & GRAVITY SEPARATION EQUIPMENT
- Phone: +86-371-55091029
- Tel: +86 18538798892
- Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.
Product Introduction
It is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal , coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment.

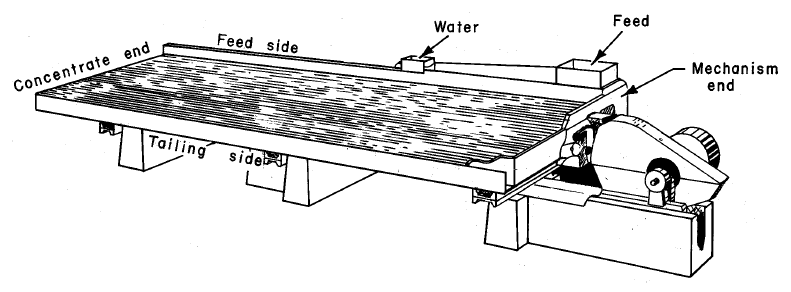

LY Shaking Table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.
The table surface is constructed of ore sand or slime and is made up of glass fibre reinforced plastic or aluminum alloy.
It is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal , coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment.
LY Shaking Table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.
The table surface is constructed of ore sand or slime and is made up of glass fibre reinforced plastic or aluminum alloy.
Uses of grinding coal powder spraying machine (Coal mist Machine)
1. High recovery and concentration ratio
2. Easy installation and operation, warranty 12 months
3. Table constructed of fiber glass
4. Different tables to choose
5. Long working life, more than 10 years
6. Adjustable stroke length and speed
3. Table constructed of fiber glass
4. Different tables to choose
5. Long working life, more than 10 years
6. Adjustable stroke length and speed
| Model | 6S-4450×1855×1546 | LY-3000×1620×1360 | LY-2100×1050×850 | LY-1100×500×430 | |||
| Table Surface Type | Coarse Sand | Fine Sand | Slurry | Three Kinds of Table Surfaces Available | |||
| Beneficiation Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |
| Table Surface Dimension | Length (mm) | 4500 | 4500 | 4500 | 3000 | 2100 | 1100 |
| Driving End Width (mm) | 1850 | 1850 | 1850 | 1320 | 1050 | 500 | |
| Concentration End Width (mm) | 1550 | 1550 | 1550 | 1100 | 850 | 430 | |
| Feeding Size (mm) | 0.074-2 | 0.074-0.5 | 0.074-0.15 | 0.074-2 | 0.074-2 | 0.074-2 | |
| Capacity (t/h) | 1.2-2.5 | 0.6-1 | 0.8-1.2 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |
| Feed Density (%) | 20-30 | 18-25 | 15-20 | 10-30 | |||
| Stroke (mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | |
| Frequency (r/min) | 220 | 250 | 280 | 210-320 | 250-450 | 280-460 | |
| Water Consumption (t/h) | 3-6 | 1.25-2.5 | 0.4-0.7 | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
| Notch Groove Section Shape | Rectangle | Sawtooth Wave | Triangle | Rectangle, Sawtooth Wave and Triangle Available | |||
| Motor Power (kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | |
| Dimension (mm) | 5600×1855×860 | 4075×1620×1360 | 3040×1050×850 | 1530×500×430 | |||
