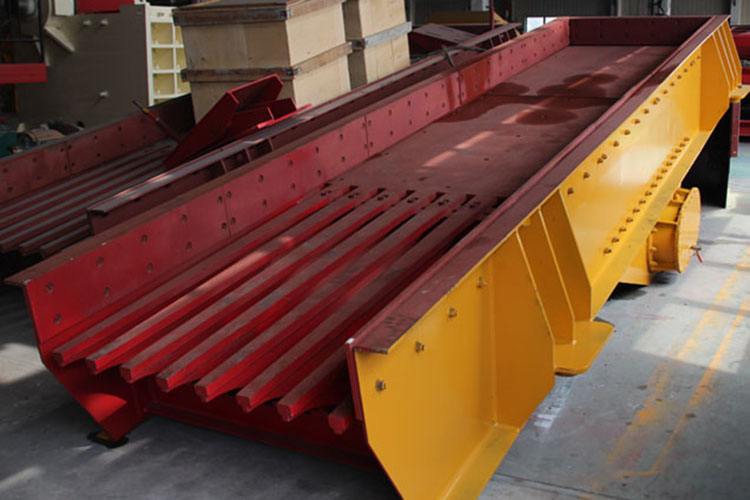

Introduction of Vibrating Feeder:
Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed materials into primary crusher evenly, and meanwhile because of the grit-shaped screen, it can screen away soil contained in the raw material, and increase the capacity of primary crushing. It is suitable to feed material into primary crusher in hydroelectric field, building material and mining industry.
1.Long working line and various screening specifications.
2.Adopting the eccentric blocks to generate strong vibrating force.
3.Screen cross-beam and box are connected by strong belts, simple structure, convenient in maintenance.
4.Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.
| Model |
Max Feed Size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (kg) |
Dimension (L*W*H) (mm) |
| GZD-850x3000 | 400 | 120 | 3.7x2 | 3607 | 3110x1800x1600 |
| GZD-1000x3600 | 500 | 150 | 5.5x2 | 3895 | 3850x1950x1630 |
| GZD-1100x4200 | 580 | 240 | 5.5x2 | 4170 | 4400x2050x1660 |
| GZD-1100x4900 | 580 | 280 | 7.5x2 | 4520 | 5200x2050x1700 |
| GZD-1300x4900 | 650 | 450 | 11x2 | 5200 | 5200x2350x1750 |
| ZSW-380x95 | 500 | 96-160 | 11 | 4082 | 3920x1640x1320 |
| ZSW-490x110 | 630 | 120-280 | 15 | 5352 | 4980x1830x1320 |
| ZSW-600x130 | 750 | 400-560 | 22 | 7800 | 6082x2580x2083 |
