Introduction

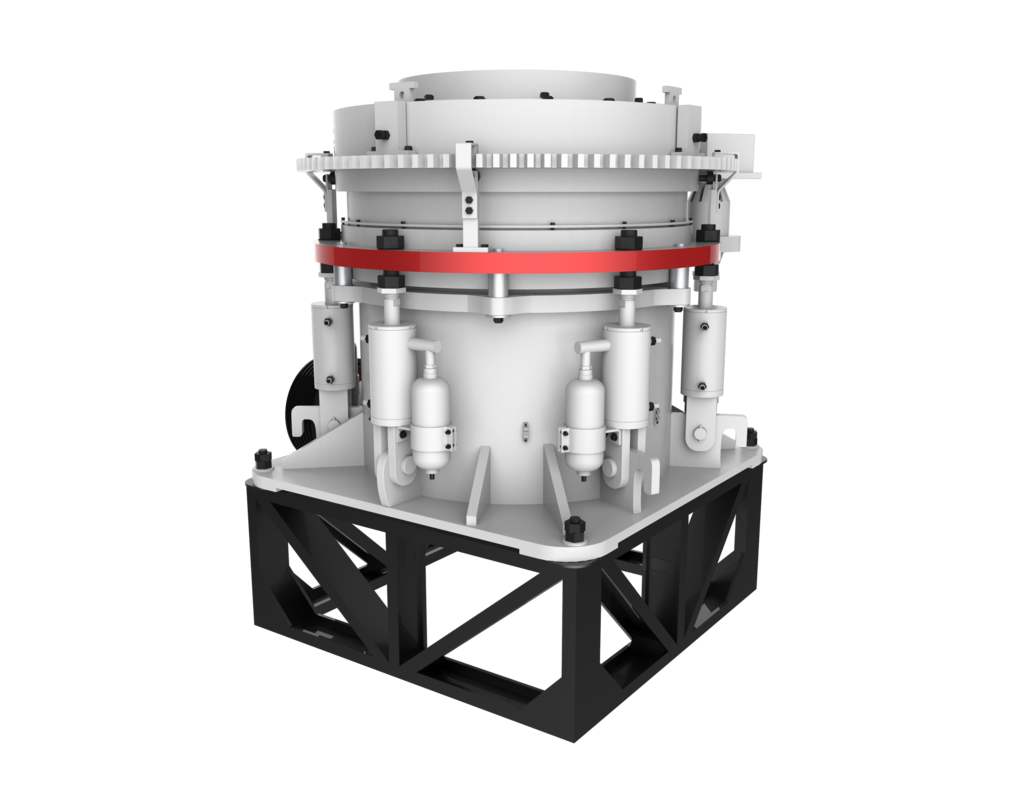

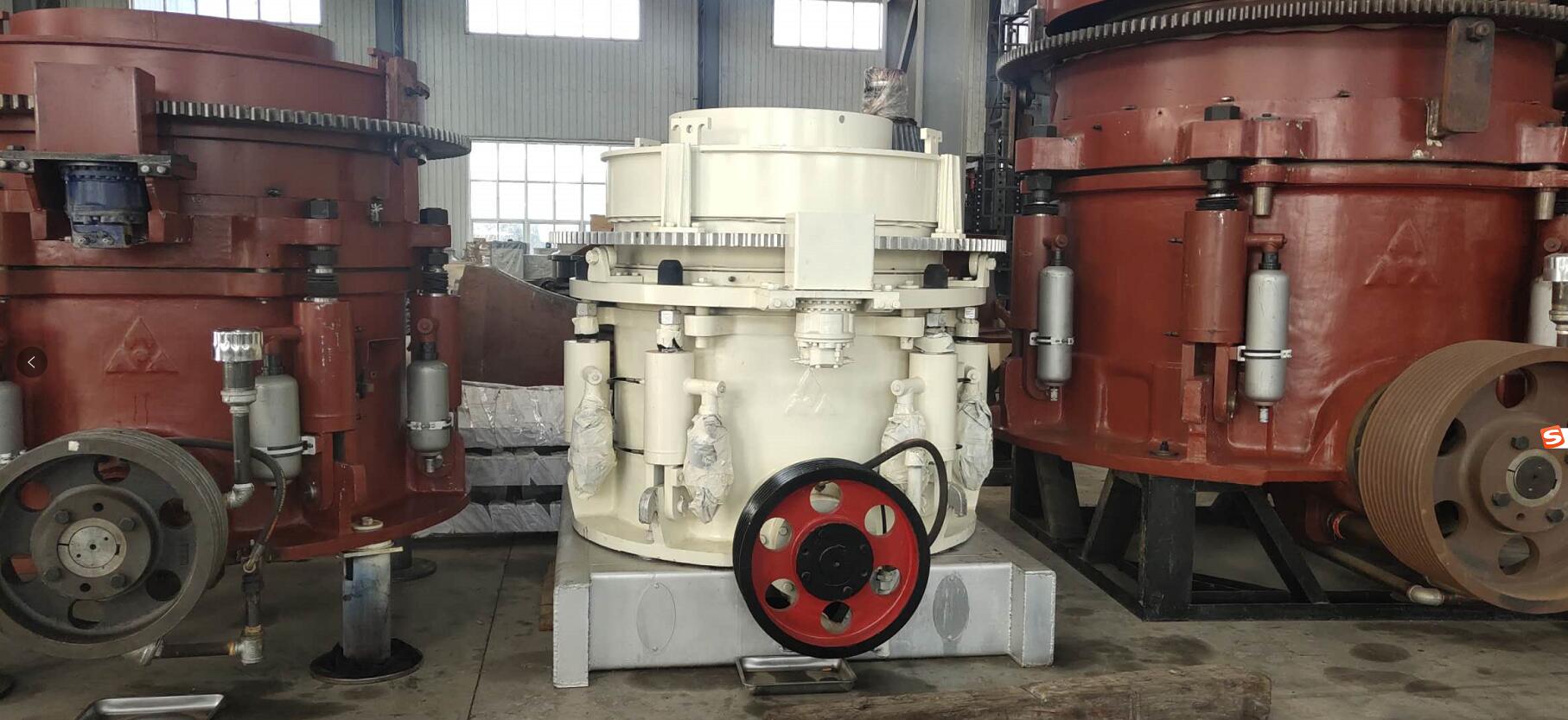

Hydraulic cone crusher is the latest generation of products , which replace the spring cone crusher and ordinary hydraulic cone crusher in construction industry today . Hydraulic cone crusher is widely used in metallurgy, construction, water and electricity, transportation, chemical industry, building materials industry. The cone crusher , suitable for crushing hard and above medium hardness of all kinds of ores and rocks, is the most ideal equipment of large Shi Liao chang and mining crushing.

HP Seires High Effiiciency Cone Crusher consists of Frame assembly , eccentric bushing assembly, driving shaft assembly, motor assembly, mantle assembly and concave assembly etc. The accessiories parts are electric control system, lubrication system and hydraulic system.

1. High crushing ratio and working efficiency.

2. Consumption of quick-wear parts can use longer and low operating cost .

3. Enables the finished product to have excellent shape.

4. Rail oil lubricating ensures reliable performance and lengthened service life.

5. Offers higher production capacity, best product size shape and easier automatic control.

Type	Model	Chamber Type	Diameter of Large End of Crushing Cone (mm)	Adjustable Range of Discharge Opening (mm)	Max Feed Size	Capacity (t/h)	Motor Power (kw)	Weight (kg)	Dimension (L×W×H)(mm)
Ф900	PYGB-0913	Standard fine type	950	14-38	110	130-250	160	17000	2007×2225×1950
	PYGB-0916	Standard medium type		18-38	132	145-250
	PYGB-0921	Standard coarse type		22-38	178	155-250
	PYGD-0907	Short coarse type		8-25	60	80-220
	PYGD-0909	Short head medium type		10-25	76	90-220
	PYGD-0912	Short head coarse type		12-25	100	120-220
Ф1100	PYGB-1114	Standard fine type	1100	16-45	115	180-445	220	18500	2520×2620×2400
	PYGB-1121	Standard medium type		20-45	180	200-445
	PYGB-1124	Standard coarse type		26-45	200	230-445
	PYGD-1107	Short coarse type		8-25	60	120-220
	PYGD-1110	Short head medium type		12-25	82	120-220
	PYGD-1112	Short head coarse type		14-25	105	120-220
Ф1400	PYGB-1415	Standard fine type	1400	16-50	130	225-620	315	29700	3106×3170×2945
	PYGB-1420	Standard medium type		22-50	170	270-620
	PYGB-1433	Standard coarse type		26-50	280	300-620
	PYGD-1408	Short coarse type		8-25	68	115-370
	PYGD-1411	Short head medium type		10-25	90	140-370
	PYGD-1414	Short head coarse type		12-25	115	180-370
Ф1500	PYGB-1518	Standard fine type	1500	19-50	152	320-725	400	38800	3405×3480×3196
