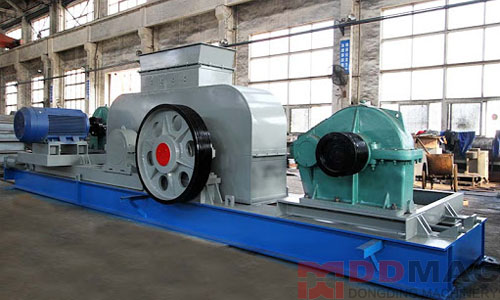

Double Roller Crusher Introduction

Double roller crusher spring is the insurance unit. When a hard material or transport of bulk materials cannot be broken fall into the crushing chamber, the roll of the force increases, the movable roll can be left by the movable bearing compression spring, increasing the gap between two roll to discharge a hard object, and then by the spring restoring force to the movable Roll back to the original position. Double roll crusher movable roll can be used to replace the broken boards.

Double Roller Crusher Machine Applications

Widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. Roll crusher machine can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.

Double Roller Crusher Advantages

1.Compact structure, lower noise and efficient;

2.Install easily and only need simple foundation;

3.Hydraulic roller crusher system can adjust the pressure and size easily.

4.Self-protection system, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity;

5.Low cost maintenance and easy to maintain.

Double Roller Crusher Technical Parameter

Model	Feed Size (мм)	Output Size (мм)	Capacity (t/h)	Motor Power (KW)
2PG0202	＜10	0.5-5	0.5-10	2.2×2
2PG0402	＜20	0.5-10	1-15	5.5×2
2PG0404	＜30	0.5-10	2-25	7.5×2
2PG0604	＜40	0.5-20	5-40	11×2
2PG0605	＜40	0.5-20	6-50	11×2
2PG0806	＜60	0.5-25	10-100	15×2
2PG1008	＜80	0.5-30	15-130	22×2
2PG1208	＜90	0.5-40	30-250	30×2
2PG1212	＜90	0.5-40	40-350	45×2
2PG1612	＜110	0.5-50	60-420	55×2
2PG1616	＜110	0.5-50	75-550	90×2
2PG1816	＜130	0.5-60	90-700	110×2
