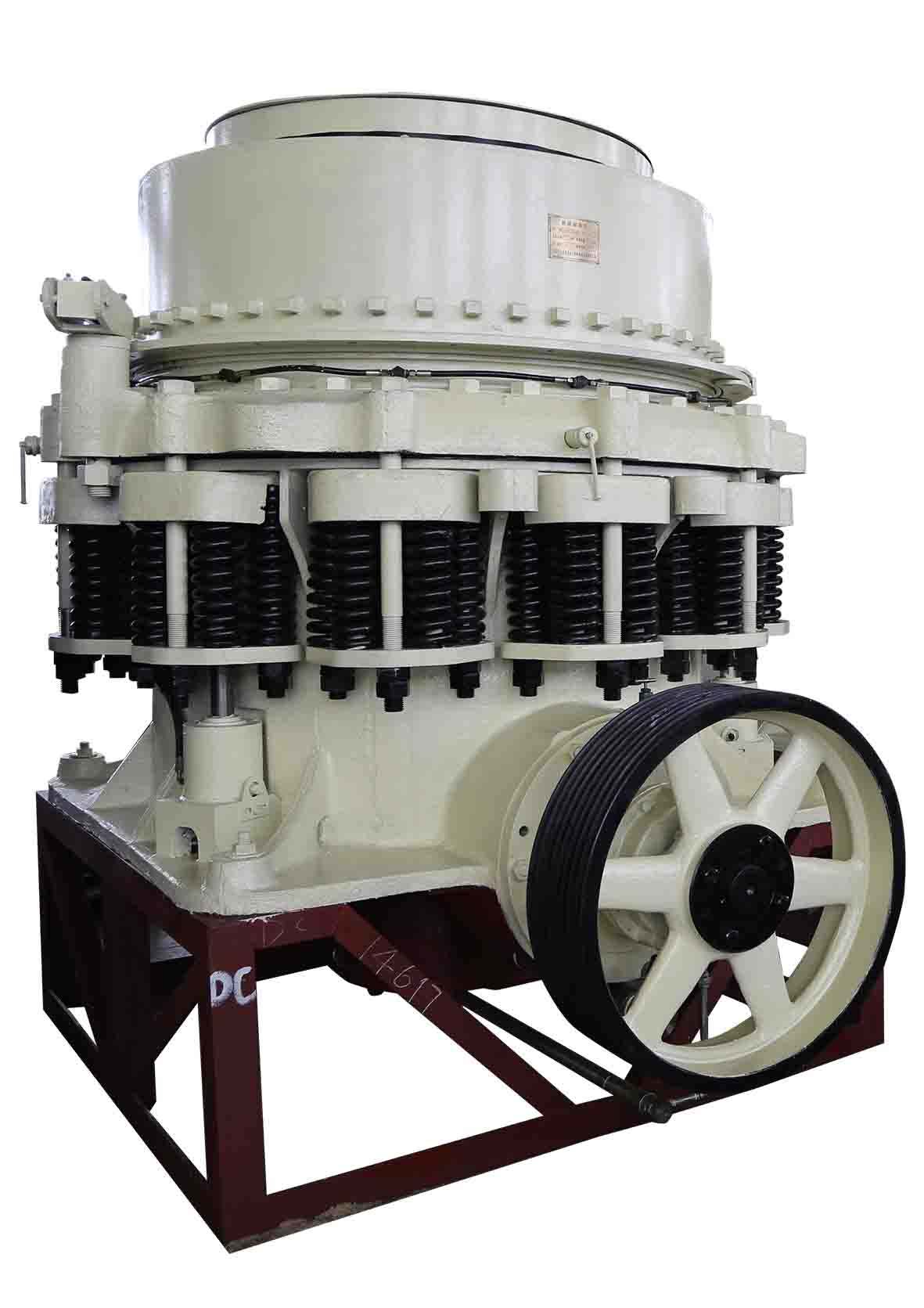

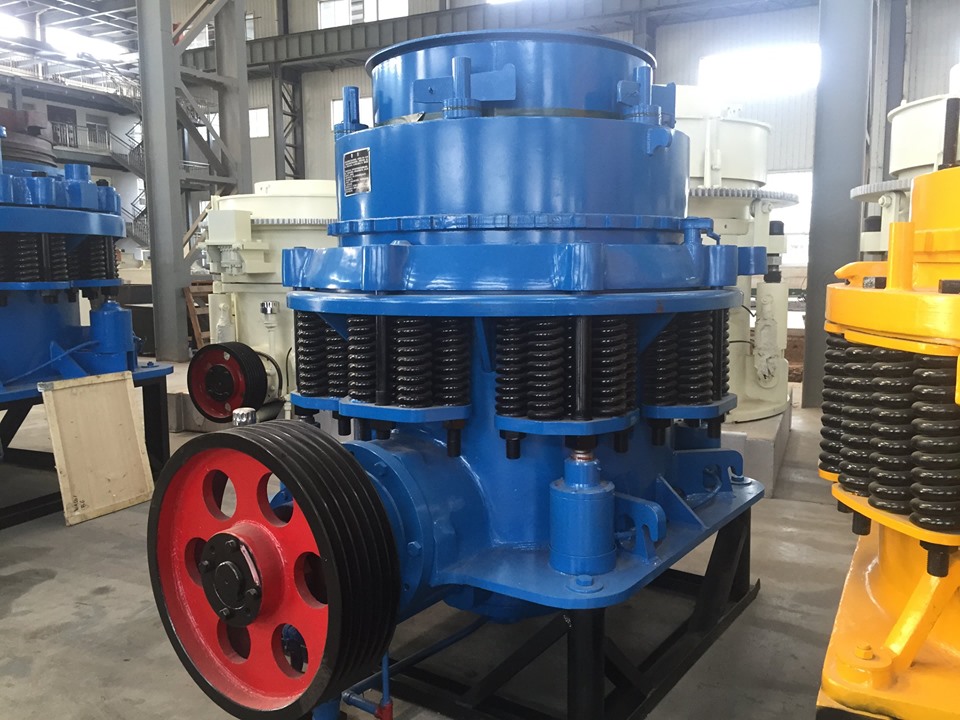

Symons Cone Crusher

The cone crusher of PSG series is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above. The crusher has the feature of high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation. The quality of material use for components and reasonable design of construction contributes to its longer running performance and even granularity of the crushed product in order to reduce the circulation load. Furthermore, by introducing the hydraulic clear chamber into the crusher of middle and large size, the down time is reduced accordingly. The customers can choose different type of chamber upon different request freely, because the wide ranges of products are provided.

This machine adopts grease sealing so as to prevent the watering and draining system from being blocked and avoid the defect of easy mix of water and oil. The spring safety system is the protection unit against overload, and it can keep the crushing chamber from damaged by foreign substance or iron pieces.

1.High capacity and good quality;

2.Long life for quick-wear parts & low investment cost;

3.Continuous lubrication to reduce downtime maintenance time.

Specifications	Style	Chamber Type	Broken Cone Main Dia.(mm)	Adjustable Range of Output Size(mm)	Mouth Edge Feeding Size in the Min Recommended Discharging Port (mm)	Max Feeding Size (mm)	Capacity(t/h)	Motor Power(kw)	Weight(kg)	Overall Dimension(LxWxH)(mm)
Ф900	PSGB-0910	standard thin	914	9-22	102	85	45-91	75	9980	2656×1636×2241
	PSGB-0917	standard thick		13-38	1775	150	59-163
	PSGB-0918	standard thicker		25-38	178	150	118-163
	PSGB-0904	Short head thin		3-13	41	35	27-90		10530
	PSGB-0906	Short head medium		3-16	76	65	27-100
	PSGB-0907	Short head thick		6-19	102	85	59-129
Ф1300	PSGB-1313	standard thin	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	PSGB-1321	Standard medium		16-38	210	178	132-253
	PSGB-1324	standard thick		19-51	241	205	172-349
	PSGB-1325	standard thicker		25-51	259	220	236-358
	PSGD-1306	Short head thin		3-16	64	54	36-163		22590
	PSGD-1308	Short head medium		6-16	89	76	82-163
	PSGD-1310	Short head thick		8-25	105	89	109-227
	PSGD-1313	Short head thicker		16-25	133	113	209-236
Ф1600	PSGB-1620	standard thin	1676	16-38	209	178	181-327	220	43270	3941×2954×3771
	PSGB-1624	Standard medium		22-51	241	205	258-417
	PSGB-1626	standard thick		25-64	269	228	299-635
	PSGB-1636	standard thicker		38-64	368	313	431-630
	PSGD-1607	Short head thin		5-13	70	60	90-209		43870
	PSGD-1608	Short head medium		6-19	89	76	136-281
	PSGD-1613	Short head thick		10-25	133	113	190-336
	PSGD-1614	Short head thicker		13-25	133	113	253-336
