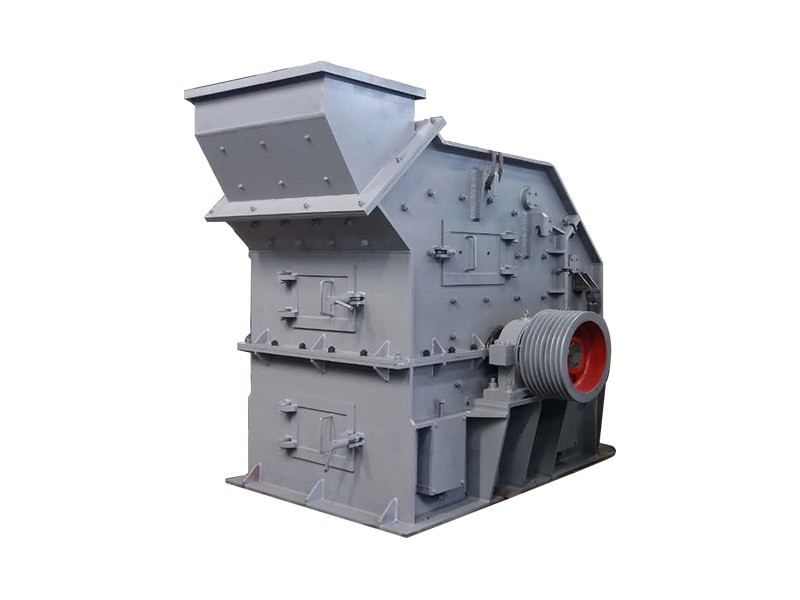

Introduction of Fine Impact Crusher
These series of impact crushers are designed for crushing ores and rocks with particle size no more than 500mm and compression strength no more than 320MPa. They enjoy features of high crushing ratio, high-efficient crushing, cubic shape of product, alternative crushing, etc. and they are ideal aggregate processing widely used in expressway, hydropower construction, airport and building industries.
Applied Materials: Limestone, coal, cement clinker, iron ore, shale, dolomite, granite, gypsum, mixed materials, and other medium and hard materials.
1.Output size very fine
2.Uniform particle-type uniform
3.Large capacity
4.Long life hammerhead
5.Small matching power
6.Change 3 stages crushing to 2 stages crushing
7. Process simplification
Model (Rotor*Width)(mm) |
Feeding port size(mm) |
Feeding size(mm) |
Output size (mm) |
Discharging size(mm) |
Capacity(t/h) |
Power (kw) |
||
Cement clinker | Limestone | Glass sand | ||||||
PXJ800×400 | 400x185 | ≤120 | ≤5 | 5-20 | 20-30 | 35-45 | 35-45 | 22-37 |
PXJ 800×600 | 500x250 | ≤180 | ≤5 | 5-20 | 35-40 | 45-55 | 45-55 | 37-45 |
PXJ 800×800 | 550x330 | ≤180 | ≤5 | 5-20 | 35*45 | 55-65 | 55-65 | 37-45 |
PXJ 1010×1010 | 1000x350 | ≤180 | ≤5 | 5-20 | 45-55 | 65-75 | 65-75 | 45-55 |
PXJ 1200×1000 | 1200x400 | ≤180 | ≤5 | 5-20 | 80-110 | 50-100 | 50-100 | 90-110 |
PXJ 1200×1200 | 1200x450 | ≤180 | ≤5 | 5-20 | 100-110 | 90-100 | 90-100 | 110-132 |
PXJ 1400×1400 | 1500x500 | ≤190 | ≤5 | 5-20 | 100-150 | 100-150 | 100-150 | 160 |
PXJ 1600×1600 | 1600x550 | ≤190 | ≤5 | 5-20 | 170-210 | 190-250 | 190-250 | 200 |
PXJ 1800×1800 | 1800x800 | ≤190 | ≤5 | 5-20 | 250-270 | 280-310 | 280-310 | 315 |
