CRUSHING & SCREENING EQUIPMENT

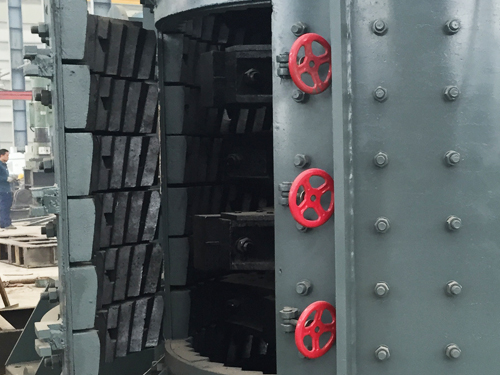

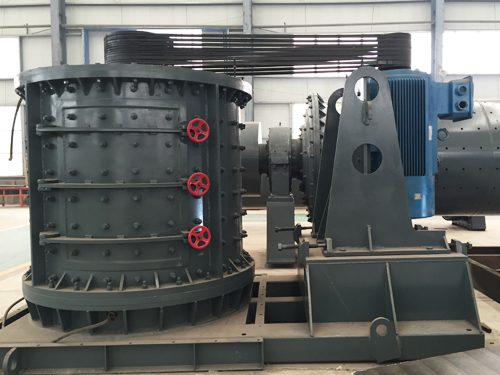

Compound Crusher

  • Product ID:CRUSHING & SCREENING EQUIPMENT
  • Phone: +86-371-55091029
  • Tel: +86 18538798892
  • Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.

Introduction
This series machine can be used for grinding middle hard ores such as iron ore, aluminum ore, grit stone, gypsum, blast furnace slag, coal gangue, phosphorus ore, and lump coal. Also, it can be used in the field of building materials, mining industry, metallurgy, coal and chemical industry.



1. Excellent crush ratio.

2. High effiency and low consumption.

3. Stable and simple structure.

4. Simple structure and easy operation,

5. Reliable quality and service.

Model Discharge size(mm) The Maximum
Feeding Size(mm)
Capacity(t/h) Power(kw) Total weight(t) Overall dimension
(L×W×H)(mm)
PFL-800 <3-5, 60-90% <100 10-20 22 2.3 2100×1200×1700
PFL-1000 <3-5, 60-90% <120 20-40 45 4.5 2600×1400×1900
PFL-1250 <3-5, 60-90% <150 40-70 75 8.5 2800×1600×2100
PFL-1500 <3-5, 60-90% <180 50-90 110 13.7 3100×1900×2200
PFL-1750 <3-5, 60-90% <200 60-110 160 20.2 3710×2360×2390
PFL-2000 <3-5, 60-90% <220 80-140 200 24.5 4100×2660×2620
