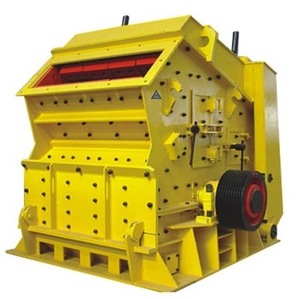

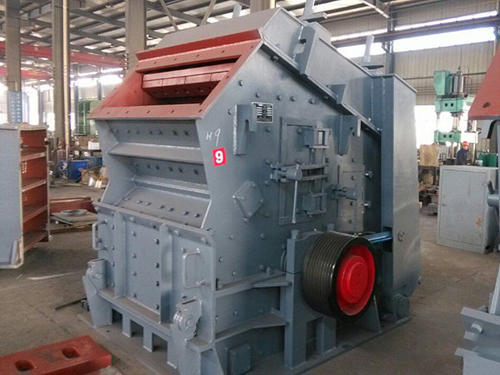

Impact Crusher

  • Product ID:CRUSHING & SCREENING EQUIPMENT
  • Phone: +86-371-55091029
  • Tel: +86 18538798892
  • Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.

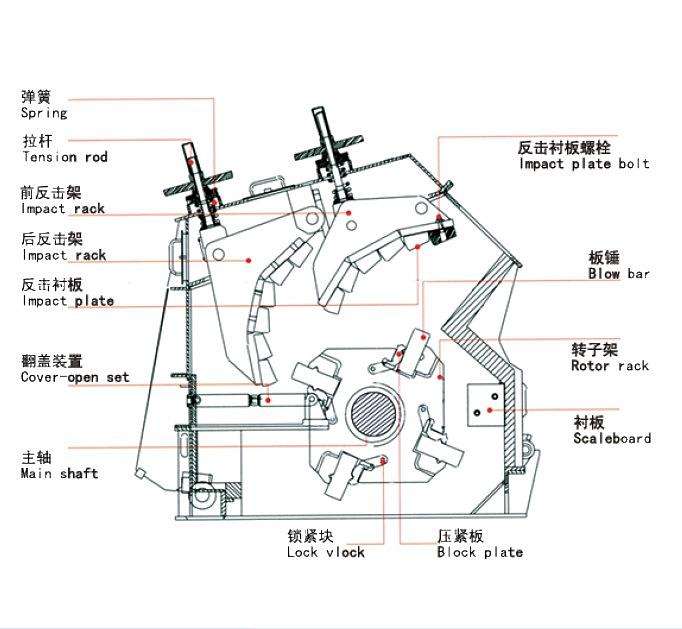

Working Principle of Impact Crusher:

The electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.
It can also be customized.


1. Cubic shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. High chrome and abrasion resistant blow bar, powerful impacting force;
4. Non-key connected, easy maintenance, economical and reliable;
5. Compact construction, high efficiency.



Model
Rotor
Size
(mm)
Feed
Opening Size
(mm)
Max. Feeding
Size
(mm)
Capacity
(t/h)
Motor
Power
(kw)
Weight
(t)
Overall
Dimension
(mm)
PF-1007 Φ1000×700 400×730 250 15-60 37-55 9.5 2400×1560×2660
PF-1010 Φ1000×1050 400×1080 300 50-90 55-75 13.2 2440×2250×2630
PF-1210 Φ1250×1050 400×1080 300 70-130 110-132 16.5 2700×2340×2870
PF-1214 Φ1250×1400 400×1430 300 90-180 132-160 19.5 2700×2695×2900
PF-1315 Φ1320×1500 860×1520 350 120-250 180-260 24.8 2860×2800×3050
PF-1320 Φ1320×2000 860×2030 500 160-350 300-375 30 2870×3350×3090
