Mobile Trommel Screen Plant Introduction

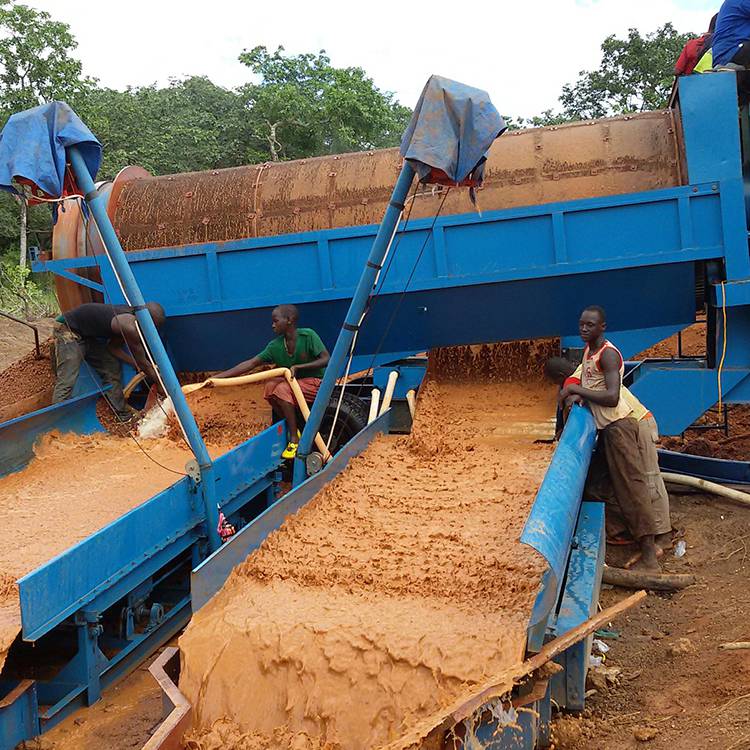

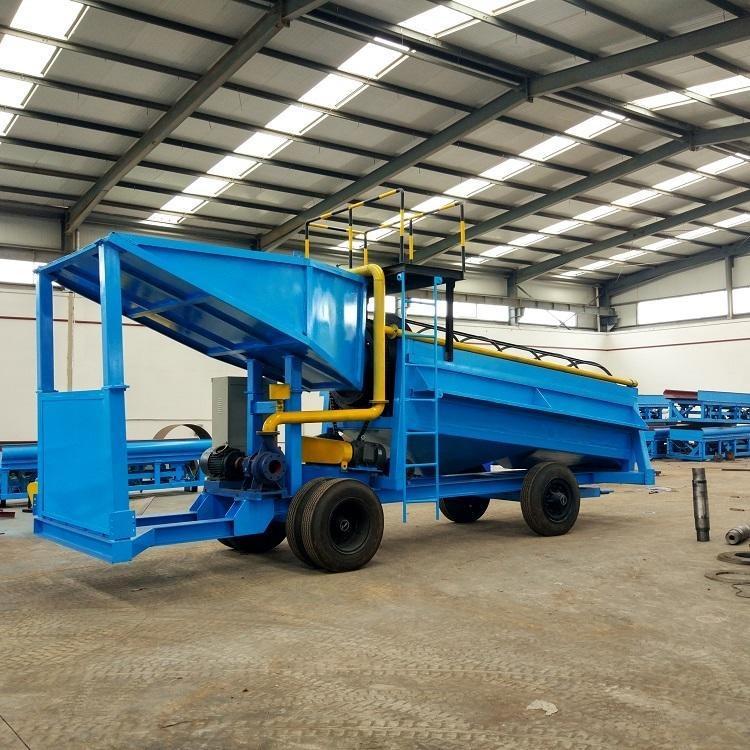

Mobile trommel washing plant is composed by hopper, trommel, chassis, tires, turntable, generator, water pump, gearing, control panel and gold recovery sluice.The mobile trommel screen is a optimized removable platform for gold recovery, applicable to small or medium scale of placer gold ore processing that need mobile operation.Its advantage: less investment, less labor, fast return of investment, simple operation , mobile etc.
Mobile Trommel Screen Technical parameters
Model |
Capacity (t/h) |
Power (kw) |
Drum diameter (mm) |
Drum length (mm) |
Screen size (mm) |
Dimension (mm) |
Weight (kg) |
MGT1030 | 30-50 | Diesel engine | 1000 | 3000 | 3~20 | 5860*1400*2550 | 3900 |
MGT1230 | 50-80 | 1200 | 3000 | 5860*1600*2600 | 5500 | ||
MGT1545 | 80-120 | 1500 | 4500 | 8310*2180*3030 | 8600 | ||
MGT1848 | 120-180 | 1800 | 4800 | 8500*2450*4000 | 9300 |
