Rotary Srubber

  • Product ID:CRUSHING & SCREENING EQUIPMENT
  • Phone: +86-371-55091029
  • Tel: +86 18538798892
  • Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.

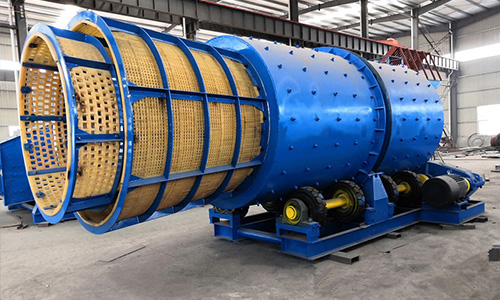

I. Rotary Scrubber Introduction:
The rotary scrubber wash the rocks and pebbles collide, rub, roll, and decompose the clay with the rotation of the roller in the roller.
The output is also large. The cleaning efficiency is very high for sand and gravel.Drum washing machines have also been widely used in many sedimentary ore production lines.The new drum washing machine is mainly suitable for placers with large mud content and high viscosity.According to actual needs, a cone screen is installed at the discharge port, which can realize ore washing and screening by one machine at the same time.

Rotary Scrubber Advantages:
1. Large processing capacity and strong ore washing capacity.
2. The long ore washing cylinder makes the material stay for a long time, fully and powerfully dispersing the material completely.
3.The cylinder adopts thick steel plate.
4. High-pressure flushing water flushes the inner wall of the cylinder.
5. The maximum feed size can reach 200-300mm.

Rotary Trommel Scrubber Techincial parameters


Model Screen Size (MM) Rotation Speed (R/Min) Feeding size (mm) Angle of inclination (degree) Capacity (T/H) Power (KW)
DD-400 ≤20 27.9 ≤80 ≤10 1-5 3
DD-600 ≤25 27.6 ≤80 ≤10 5-10 5
DD-750 ≤25 27.6 ≤100 ≤10 10-30 7.5
DD-900 ≤25 27.6 ≤100 ≤10 30-50 11
DD-1200 ≤25 17 ≤160 ≤10 50-70 15
DD-1500 ≤50 16 ≤230 ≤10 70-100 30
DD-1800 ≤50 16 ≤230 ≤10 100-150 37
DD-2100 ≤50 16 ≤230 ≤10 150-180 45
