Instruction:

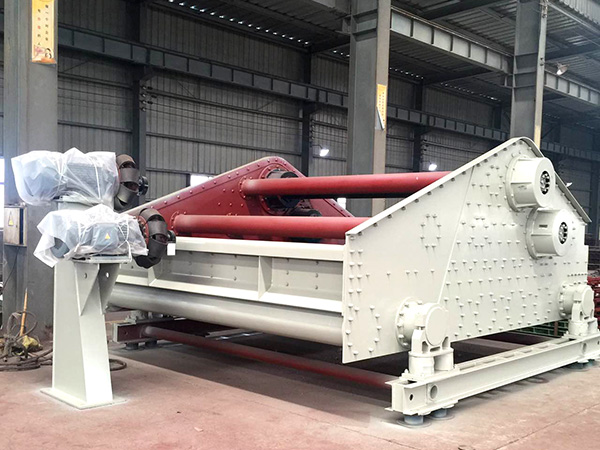

SZZ vibrating screen whose movement way is round, classifying small and medium granularity materials, being a traditional and most used screening equipment in mining.
The centralized vibrating screen is used for screening of ore,coal and other materials at all levels of roughness,fineness and fineness.It can also be used for cement and media removal.So can be used for coal metallurgy,building materials chemical industry and other departments.The sieve machine for classifying small and medium-sized materials has simple structure,strong reliability,convenient maintenance and production efficiency.
1. Pls indicating the model and quantity, also noting screen holes size, screen mesh form. (Woven screen mesh or Punched sieve plate)
2. The motor can be installed on the left or the right side, please indicate if there are installation requirements, otherwise, according to the supplier drawings supply.
3. If having special requirements, our factory can do non-standard product design and manufacturing.
4. C be processed according to user requirements into seat type, need to specify.
Model |
Specifications(mm) |
Maximum feeding size(mm) |
Processing capacity(t/h) |
Model of motor |
Power of motor(kw) |
Weight (kg) |
SZZ0918 |
900 x 1800 |
40 |
20-25 |
Y100Lr4 |
2.2 |
420 |
SZZ20918 |
900 x 1800 |
40 |
40-50 |
Y100Lr4 |
2.2 |
570 |
SZZ1225 |
1250 x 2500 |
100 |
70-100 |
Y132S-4 |
5.5 |
1020 |
SZZ21225 |
1250 x 2500 |
100 |
70-100 |
Y132S-4 |
5.5 |
1320 |
SZZ1530 |
1500 x 3000 |
100 |
90-200 |
Y132M-4 |
7.5 |
1650 |
SZZ21530 |
1500 x 3000 |
100 |
90-200 |
Y132M-4 |
7.5 |
2870 |
SZZ21540 |
1500 x 4000 |
100 |
90-200 |
Y160L-4 |
15 |
4240 |
SZZ1836 |
1800 x 3600 |
150 |
100-300 |
Y180M-4 |
18.5 |
4500 |
SZZ21836 |
1800 x 3600 |
150 |
100-300 |
Y180M-4 |
18.5 |
5616 |
